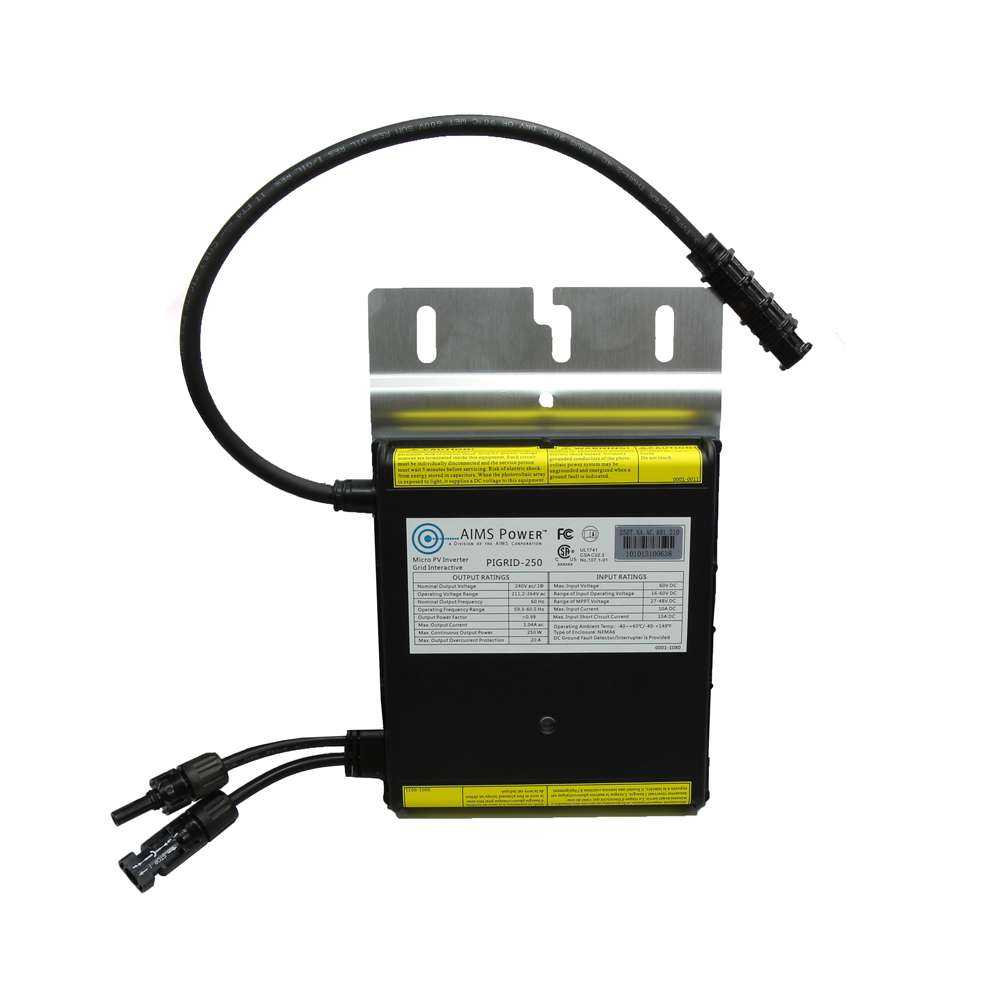

6 Pack of Aims 250 Watt Micro Grid Inverters Package PIGRIG2506T
- Continuous power250 W
$1,210.00
Out of stock
This item cannot be ordered online right now. Call (727) 761-7772 to ask about availability.
Questions? Call (727) 761-7772
SKU PIGRIG2506T
Pairs well with
This item: 6 Pack of Aims 250 Watt Micro Grid Inverters Package PIGRIG2506T
$1,210.00Choose its options above to add it.
Total for 3 items: $170.30
Overview
Included in this microinverter package:
- QTY 6 PIGRID250 – 250 watt micro grid tie inverters
- PIGRID250-T – trunk cables for PIGRID250 connection
- Free Shipping
PIGRIG250 Features:
- Wireless Communication
- 15 year warranty
Mechanical Data
- Operating Temperature Range (℃): -40 ~ +85
- Ambient Temperature Range (℃): -40 ~ +65
- Dimensions (W X H X D): 6.5 X 7.2 X 1.1in
- Weight: 7.30 lbs
- Enclosure rating: NEMA6
- Cooling: Natural convection
Show the full description
AC Output Specifications
- Rated output current: 1.04A
- Rated output power: 250 Watts
- Frequency: +/- 0.1 Hz
- Nominal frequency/range (Hz): 60/57-60.5
- Nominal output voltage/range (V): 240/211-264
- Power factor: >0.99
- Output current harmonic distortion: <3%
- Maximum output overcurrent protection (A): 20
- Maximum Units per 20A Branch: 14
- Maximum output fault current (ac) and duration: 66.67 Apk, 2.13 ms of duration, 11.22 Arms
- Trip limit and trip time accuracy : Voltage: +/- 1%
- Alternate Trip Time +/- 50 ms
DC Input Specifications:
- MPPT voltage range (V): 27-48
- Recommended PV module power (STC) range: 200-310 Watts
- Operating voltage range: 16-60 Volts
- Maximum input current: 10A
- Maximum input voltage: 60 Volts
- Maximum input source back feed current to input source: -36A
Specifications
| Continuous power | 250 W |
|---|
| Weight | 49.1 lb |
|---|
| Condition | New |
|---|
| SKU | PIGRIG2506T |
|---|---|
| Model number | PIGRIG2506T |
| Manufacturer part number | PIGRIG2506T |
