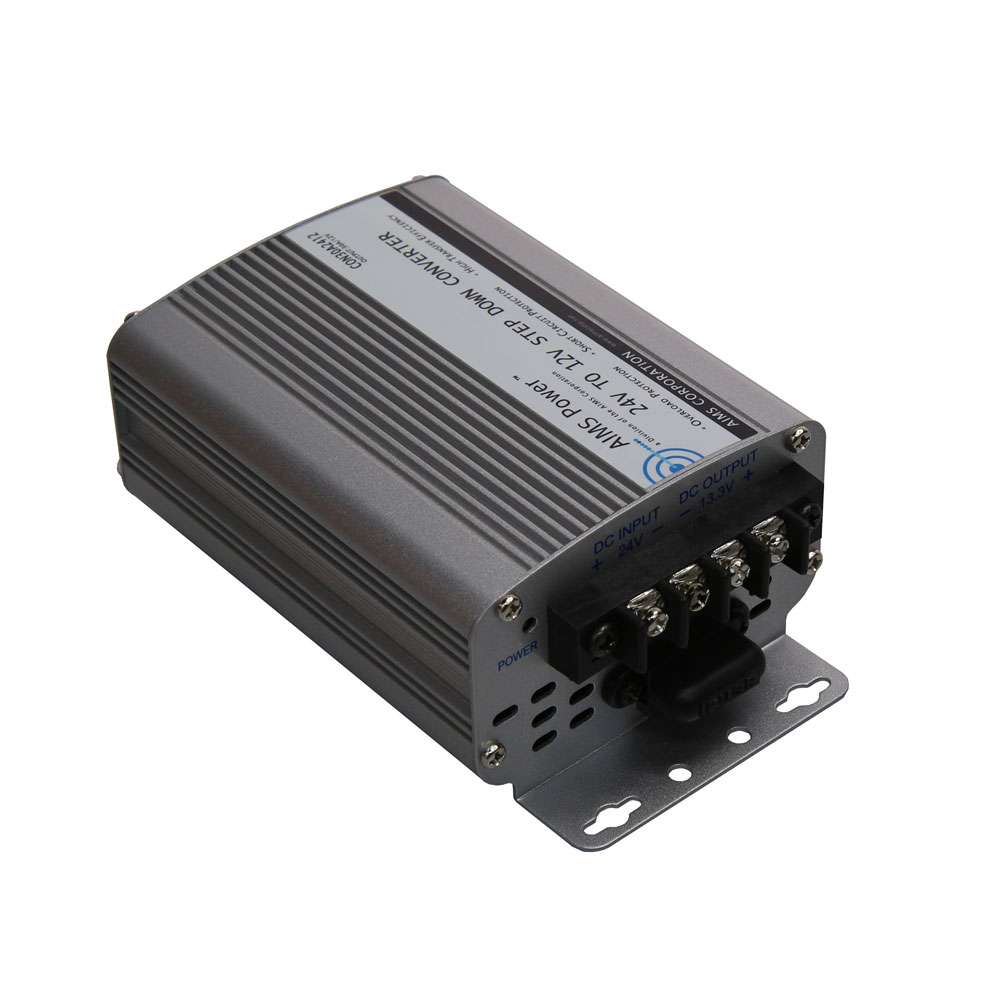

Aims 30A 24V to 12V DC-DC Converter CON30A2412

The CON30A2412 DC-DC converter steps down 24 VDC (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC at 30 Amps. This a non-isolated 30A DC-DC converter and is manufactured to be used in negative ground systems.

Aims CON30A2412 Features:

• 30 Amp 24 volt to 12 volt dc to dc converter
• Green LED on front panel to confirm power on
• Terminal block for DC input/output
• Over Temperature protection
• Over Load protection
• DC Input Low Battery Shutdown
• DC Input High Battery Shutdown
• DC Output Short Protection
• DC Output Over Current Protection
• DC Output Over Voltage Protection
• Aluminum case for optimal cooling
• Instruction manual
• Free 1 year tech support
• 1 Year Warranty Parts and Labor
• CE EN61000-6-3:2007+A1:2011
• CE EN61000-6-1:2007

Specifications:

• DC Input Voltage: 20-37 Vdc
• DC Output Voltage: 12.5-13.5 Vdc
• Output Current: 30 amps
• Output Current Max: 36 amps
• Non-Isolated
• Conversion Effiency: >90%
• DC Input Low Battery Shutdown: 18 +/- 1 V
• DC Input High Battery Shutdown: >38Vdc
• DC Input Over Current Protection: 20A Fuse
• DC Input Polarity Protection: Fuse Protected
• Over Temperature Protection: 150 +/- 5 degrees F
• DC Output Short Protection: Yes
• DC Output Over Current Protection: 36 amps
• DC Output Over Voltage Protection: TVS Diode
