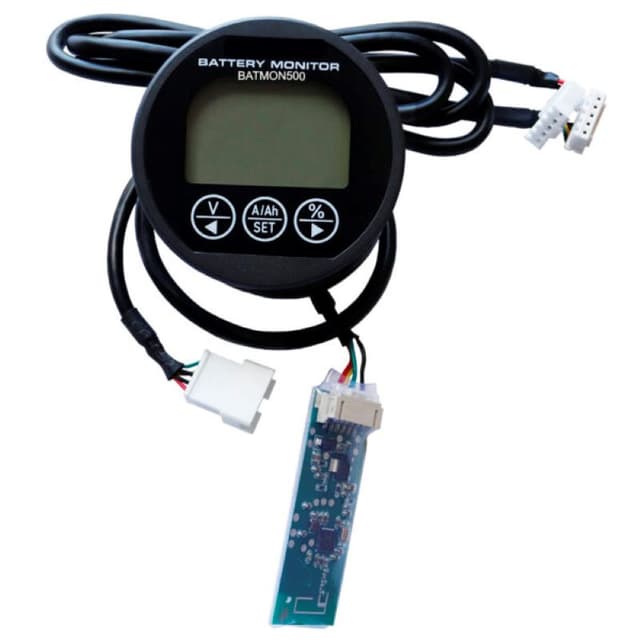

AIMS 500A Remote Battery Monitor for Lithium &Most Battery Types up to 80V

stationary applications.

• Golf Carts & Utility Vehicles
• Marine RVs
• Solar Energy Storage
• Aerial Work Platforms
• Robots

Included components:

• Current shunt
• Shielded wire (1M)
• Display
• Butterfly nut
• Sense wire 22AWG (1 M)
• Bezel square

Specifications:

Parameter MIn Max U of M Voltage 8 80 V Current 0 500 A Capacity .1 999 Ah Temperature 0 35 C Active Parasitic Current 14 mA Standby Parasitic Current .8 mA Sleep Parasitic Current 80 uA Voltage Accuracy +/-1 % Current Accuracy +/-1 % Capacity Accuracy +/-1 %

Connecting To The Smart Battery Monitor App:

• Install the AIMS POWER Battery Monitor APP via the

Google TM or Apple App store.

• Open the app and select the Battery

Monitor by its serial number.

• At the ‘SETTINGS’ screen, enter the battery

parameter information required followed by tapping ‘SAVE SITTINGS’ on the bottom.

• Tap the setting button on the top right,

into the ‘CALIBRATION’ screen, enter the battery parameter information required, followed by tapping ‘SAVE SETTING’ at the bottom.

• You will now be in the dashboard where

you can monitor the battery’s state of charge, voltage, current, temperature, time remaining and the cycle life.

• Your smart battery monitor is now ready

to use.

SKU:

BATMON500
