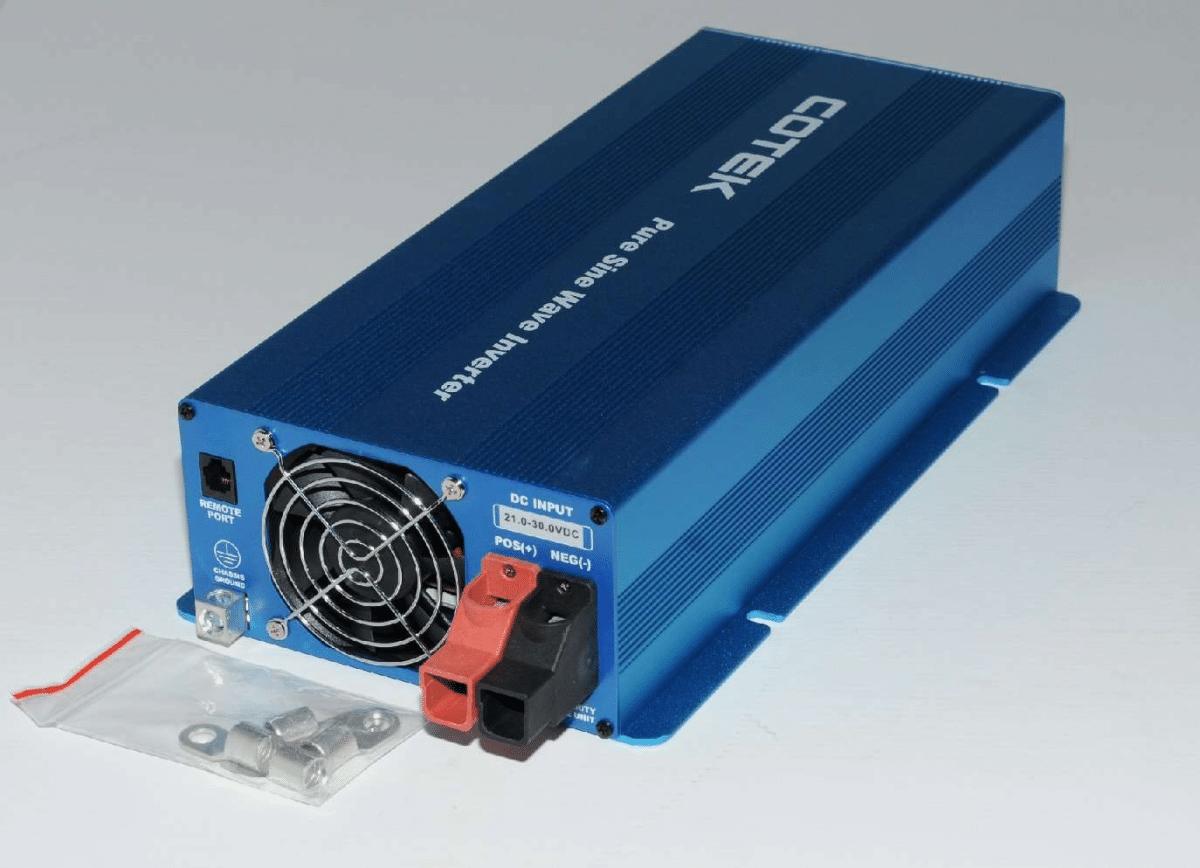

COTEK 1500 Watt 48V Pure Sine Inverter SK1500-148

Continuous power1,500 W
Nominal voltage48 V

$479.00

Out of stock

This item cannot be ordered online right now. Call (727) 761-7772 to ask about availability.

Compare

Works with: 48 V systems

Questions? Call (727) 761-7772

SKU SK1500-148

Pairs well with

This item: COTEK 1500 Watt 48V Pure Sine Inverter SK1500-148
$479.00
Choose its options above to add it.
AIMS Power Lithium Battery 48V 200AMP LiFePO4 Industrial Grade$4,440.00Details of AIMS Power Lithium Battery 48V 200AMP LiFePO4 Industrial Grade
Victron Energy Modular fuse holder for MEGA-fuse$35.70Details of Victron Energy Modular fuse holder for MEGA-fuse
Dakota Lithium 48V 96Ah Deep Cycle LiFePO4 Battery$2,775.00Details of Dakota Lithium 48V 96Ah Deep Cycle LiFePO4 Battery

Total for 3 items: $7,250.70

Overview

This high efficiency microprocessor controlled DC-AC inverter converts 48 Volts DC (Nominal) to 1500 watts of pure sine-wave AC power at 100/110/120 Volts, 50/60 Hz. The unit comes with input battery cable lugs and dual NEMA 5-20R GFCI receptacles. Features include overload, short circuit, over-temperature, under & over voltage protections, low power saving mode to conserve energy. The unit is e-13/ CE / FCC approved and the safety standards of the unit conform to UL-458 specifications.

Part Number: COTEK SK1500-148

Features:

True sine wave output (THD < 3%)
Power ON-OFF remote control
Input & output fully isolation
Load control cooling fan
Advanced microprocessor
Output frequency 50/60 Hz switch selectable
Low power saving mode to conserve energy
Input polarity reverse / under voltage / over voltage protections
Output short circuit / overload / over temperature protections
Tri-color indicators display input, output level & failure status
e-13 / CE / FCC approved
2 Year Warranty

Specifications:

AC Voltage: 100 / 110 / 120VAC
Continuous Power: 1500W
Surge Power: 3000W
Waveform: True sine wave (THD < 3%)
Frequency: 50 / 60 Hz selectable by DIP switch
AC Regulation: +/- 3%
Standard Receptacles: x2 US North American GFCI
LED Indicator: Input voltage level, output load level and fault status
No Load Current Draw: .40A
Stand By Current Draw: 0.09A
DC Voltage: 48VDC
Voltage Range: 42~60VDC
Efficiency: 92%
Fuse: 20A x 3
Cooling: Loading controlled cooling fan
Remote Control: CR6 / CR8 optional
Battery Low Shutdown: 42VDC
Over Load: Shut off output voltage, re-power on to recover
Over Voltage: 61.2VDC
Over Temp: Shut off output voltage, auto resets
Output Short: Shut off output voltage, re-power on to recover
Battery Polarity Reverse: By Fuse Open
Safety Standards: Meet UL458
Isolation Resistance: I/P ~ O/P: 100M Ohms / 500VDC
EMI Conduction & Radiation: Compliance to FCC class A
Dimensions(L x W x H): 16.3 x 7.5 x 3.5 in
Weight: 10.5 lbs

Specifications

Electrical
Continuous power	1,500 W
Nominal voltage	48 V

Physical
Weight	10.5 lb

Warranty and compliance
Warranty	2 Year

Identifiers
Brand	COTEK
SKU	SK1500-148
