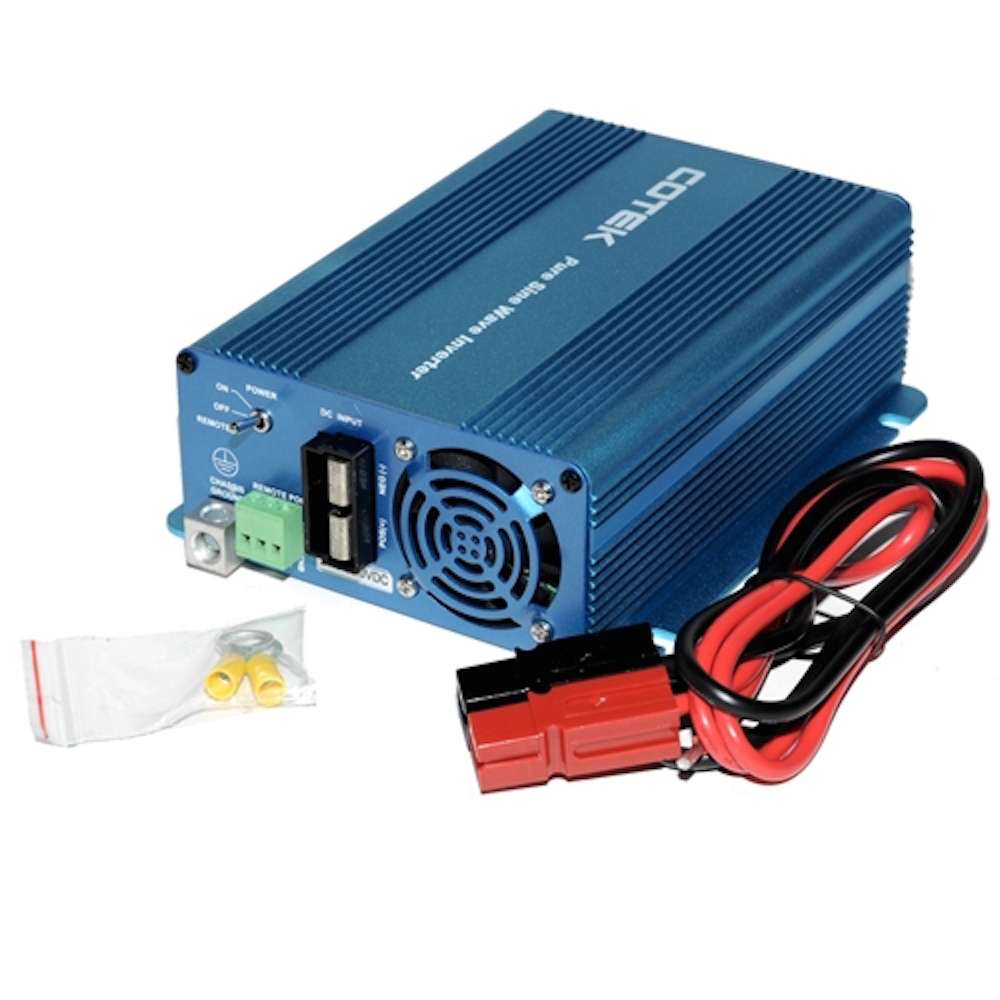

COTEK 200 Watt 24V Pure Sine Inverter SK200-124

The compact size SK inverters are available in 12/24/48V models from 150W to the large and powerful 3000W pure sine wave power inverter. Built-in multistage of power saving control endowed it with more practical function in saving your battery power for when you need it the most. Offering quality pure sine wave output, the SK series stand-alone inverters are ideally suited for electrical systems that already have a quality battery charger.

Part Number: COTEK SK200-124

Features:

• True sine wave output (THD < 3%)
• Power ON-OFF remote control
• Input & output fully isolation
• Load control cooling fan
• Advanced microprocessor
• Output frequency 50/60 Hz switch selectable
• Input polarity reverse / under voltage / over voltage protections
• Output short circuit / overload / over temperature protections
• Tri-color indicators display input, output level & failure status
• e-13 / CE / FCC approved
• 2 Year Warranty

Specifications:

• AC Voltage: 100 / 110 / 120VAC
• Continuous Power: 200W
• Surge Power: 220W
• Waveform: Pure Sine Wave (THD < 3%)
• Frequency: 50 / 60 Hz selectable by DIP switch
• AC Regulation: +/- 5%
• Standard Receptacles: NEMA5-15R / GFCI
• LED Indicator: Input voltage level, output load level and fault status
• No Load Current Draw: .32A
• DC Voltage: 24VDC
• Voltage Range: 21~30.0VDC
• Efficiency: 91%
• Fuse: 20A x 1
• Cooling: Loading controlled cooling fan
• Remote Control: By external switch
• Battery Low Alarm: 22V
• Battery Low Shutdown: 21V
• Over Load: Shut off output voltage, re-power on to recover
• Over Voltage: 30.6VDC
• Over Temp: Shut off output voltage, auto resets
• Output Short: Shut off output voltage, re-power on to recover
• Isolation Resistance: I/P ~ O/P: 100M Ohms / 500VDC
• Dimensions(L x W x H): 5.787 x 2.413 x 6.988 in
• Weight: 3 lbs
