COTEK 350 Watt 24V Pure Sine Inverter SK350-124

Continuous power350 W
Nominal voltage24 V

$174.00

Out of stock

This item cannot be ordered online right now. Call (727) 761-7772 to ask about availability.

Compare

Works with: 24 V systems

Questions? Call (727) 761-7772

SKU SK350-124

Pairs well with

This item: COTEK 350 Watt 24V Pure Sine Inverter SK350-124
$174.00
Choose its options above to add it.
COTEK CX2415 15A 24V 3 Stage Battery Charger$251.00Details of COTEK CX2415 15A 24V 3 Stage Battery Charger
Victron Energy Modular fuse holder for MEGA-fuse$35.70Details of Victron Energy Modular fuse holder for MEGA-fuse
COTEK CX2425 25A 24V 3 Stage Battery Charger$376.00Details of COTEK CX2425 25A 24V 3 Stage Battery Charger

Total for 3 items: $662.70

Overview

This model is now discontinued, the replacement is the SE350-124. We also have the Go Power 300 and Samlex 300 watt units if the COTEK is backordered.

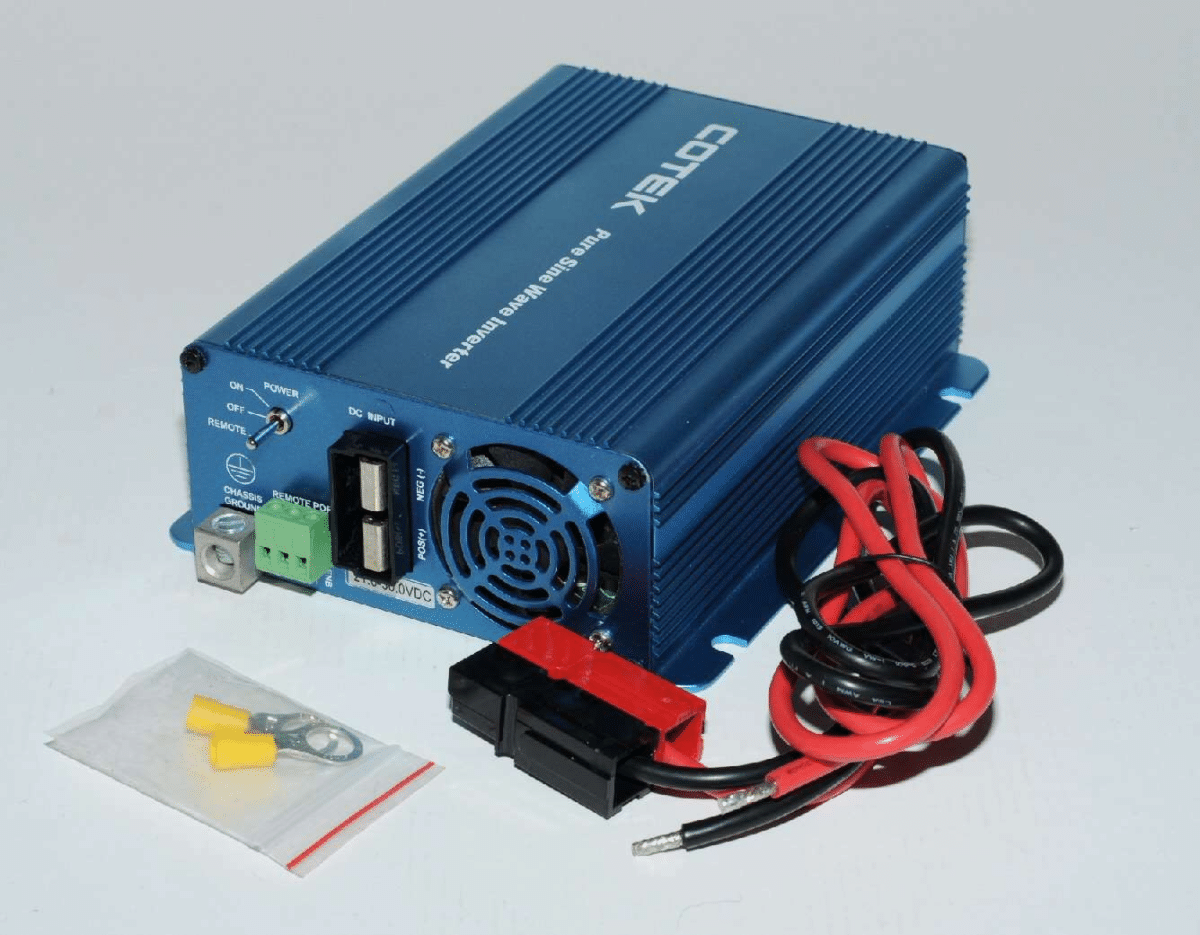

This high efficiency microprocessor controlled DC-AC inverter converts 24 Volts DC (Nominal) to 350 watts of pure sine-wave AC power at 100/110/120 Volts, 50/60 Hz. The unit comes with a set of cables terminated in Anderson connectors and dual NEMA 5-15R receptacles (North American GFCI receptacle may be requested). Battery cable lugs are also provided. Features include overload, short circuit, over-temperature, under & over voltage protections, low power saving mode to conserve energy. The unit conforms to UL-458 specifications and is e-13/ CE / FCC approved.

Part Number: COTEK SK350-124

Features:

True sine wave output (THD < 3%)
Power ON-OFF remote control
Input & output fully isolation
Load control cooling fan
Advanced microprocessor
Output frequency 50/60 Hz switch selectable
Input polarity reverse / under voltage / over voltage protections
Output short circuit / overload / over temperature protections
Tri-color indicators display input, output level & failure status
e-13 / CE / FCC approved
2 Year Warranty

Specifications:

Show the full description

AC Voltage: 100 / 110 / 120VAC
Continuous Power: 350W
Surge Power: 700W
Waveform: True sine wave
Frequency: 50 / 60 Hz selectable by DIP switch
AC Regulation: +/- 5%
Standard Receptacles: GFCI
LED Indicator: Input voltage level, output load level and fault status
No Load Current Draw: .64A
Stand By Current Draw: 0.15A
DC Voltage: 24VDC
Voltage Range: 21~30VDC
Efficiency: 91%
Fuse: 30A x 1
Cooling: Loading controlled cooling fan
Remote Control: By external switch
Battery Low Shutdown: 21V
Over Load: Shut off output voltage, re-power on to recover
Over Voltage: 30.6VDC
Over Temp: Shut off output voltage, auto resets
Output Short: Shut off output voltage, re-power on to recover
Battery Polarity Reverse: By Fuse Open
Safety Standards: Meet UL458
Isolation Resistance: I/P ~ O/P: 100M Ohms / 500VDC
EMI Conduction & Radiation: Compliance to FCC class A
Dimensions(L x W x H): 7.3 x 5.8 x 2.36 in
Weight: 3.1 lbs

Specifications

Electrical
Continuous power	350 W
Nominal voltage	24 V

Physical
Weight	3.1 lb

Warranty and compliance
Warranty	2 Year

Identifiers
Brand	COTEK
SKU	SK350-124
