Discover AES 950-0053 Rackmount ESS 30kWh Slimline Enclosure
- Capacity30 kWh
$2,100.00
Available on backorder
Questions? Call (727) 761-7772
SKU 950-0053
Overview
Indoors or outdoors, the AES RACKMOUNT 30 kWh Slimline Enclosure is economical, installs fast and offers the smallest footprint for 30k kWh of energy storage. Parallel up to four AES RACKMOUNT Slimline Enclosures for 120 kWh.

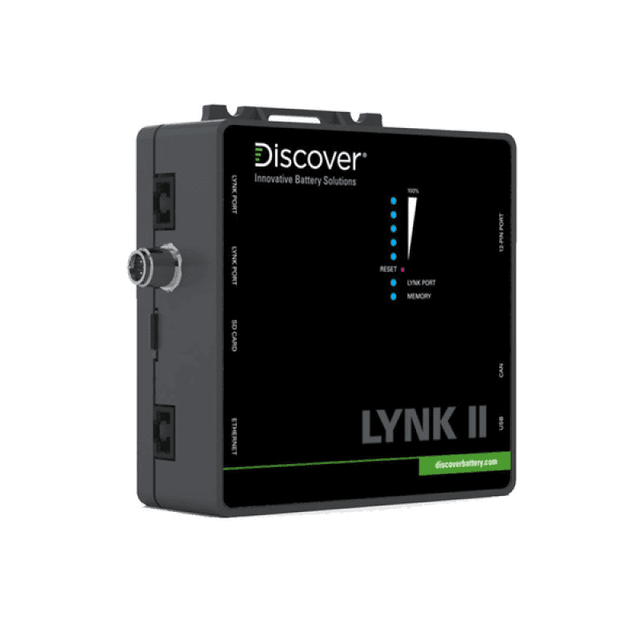

The Slimline Enclosure comes pre-assembled with a bus bar, and battery cables with Amphenol connectors and hosts up to six AES RACKMOUNT Battery Modules. Add a LYNK II Gateway for closed-loop integration with inverter-chargers.
Features:
- Indoor, Outdoor
- Batter combiner
- Battery cables
- Closed -loop comms
- Parallel 120kWh
Specifications:
- Compatibility: AES RACKMOUNT Battery Module 5.12 kWh 100 Ah
- Single Enclosure Configuration: AES RACKMOUNT Battery Module 5.12 kWh 100 Ah
- Parallel Enclosure Configuration: Up to Four AES RACKMOUNT 30 kWh Slimline Enclosures (122.8 kWh Max)
- Height (with footings): 66.75 inches
- Width: 26.8 inches
- Depth: 13.8 inches
- Weight: 176.37 lbs/ 80kg
- Environmental: NEMA 3R/ IP54
Highlights
- Expected Mid August
Specifications
| Capacity | 30 kWh |
|---|
| Weight | 176.4 lb |
|---|---|
| Dimensions | 48 × 40 × 40 in |
| SKU | 950-0053 |
|---|
Runtime estimate
Based on this battery's rated capacity of 30 kWh, with 90% of it usable. Real runtime depends on temperature, age and inverter efficiency.
Add up the watts of everything you want to run at once.
Estimated runtime27 hours
