Go Power Solar Elite 320 Watt Solar Charging System
- Power320 W
$2,703.99
Out of stock
This item cannot be ordered online right now. Call (727) 761-7772 to ask about availability.
Questions? Call (727) 761-7772
SKU SOLAR-ELITE-320
Overview
The Solar Elite System is a complete power system ideal for full-time RVers. Similar to our SOLAR EXTREME, this system includes all solar, inverter, installation hardware and smart battery components required to have the charging capibilty from both solar and shore power. It features two powerful solar modules that produce 320 watts solar charging power and will maintain your battery charge up to 18+ amps per hour. This system’s pure sine wave inverter has a capacity for you to withdraw up to 2000 watts at a time and will provide solar-fed AC power to your breaker panel. This system can be expanded to accommodate up to 480 watts of solar. Extended your weekend stay and enjoy dry camping freedom without the need for a generator.
Go Power! Part Number: SOLAR-ELITE-320
Included in this System:

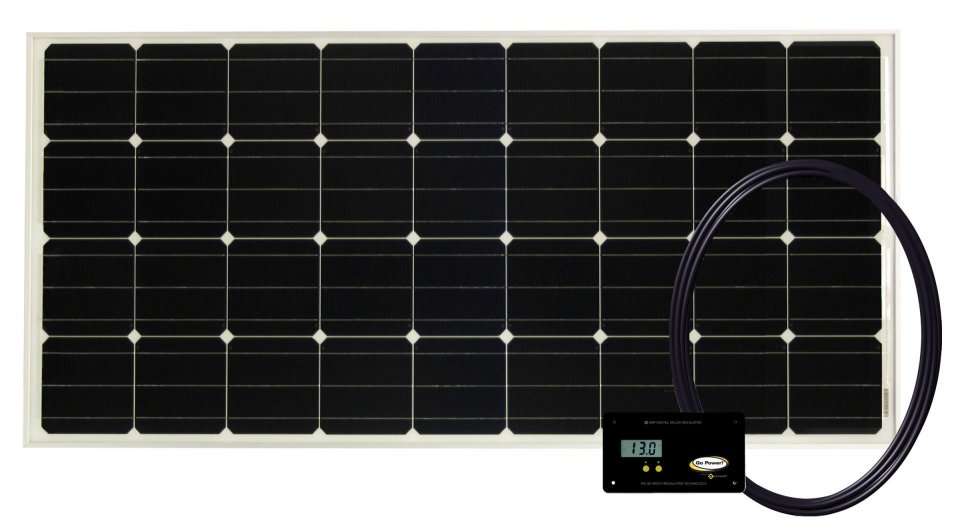

- 160 watt solar charging kit + 160 watt expansion kit (GP-RV-160 + GP-RV-160E)

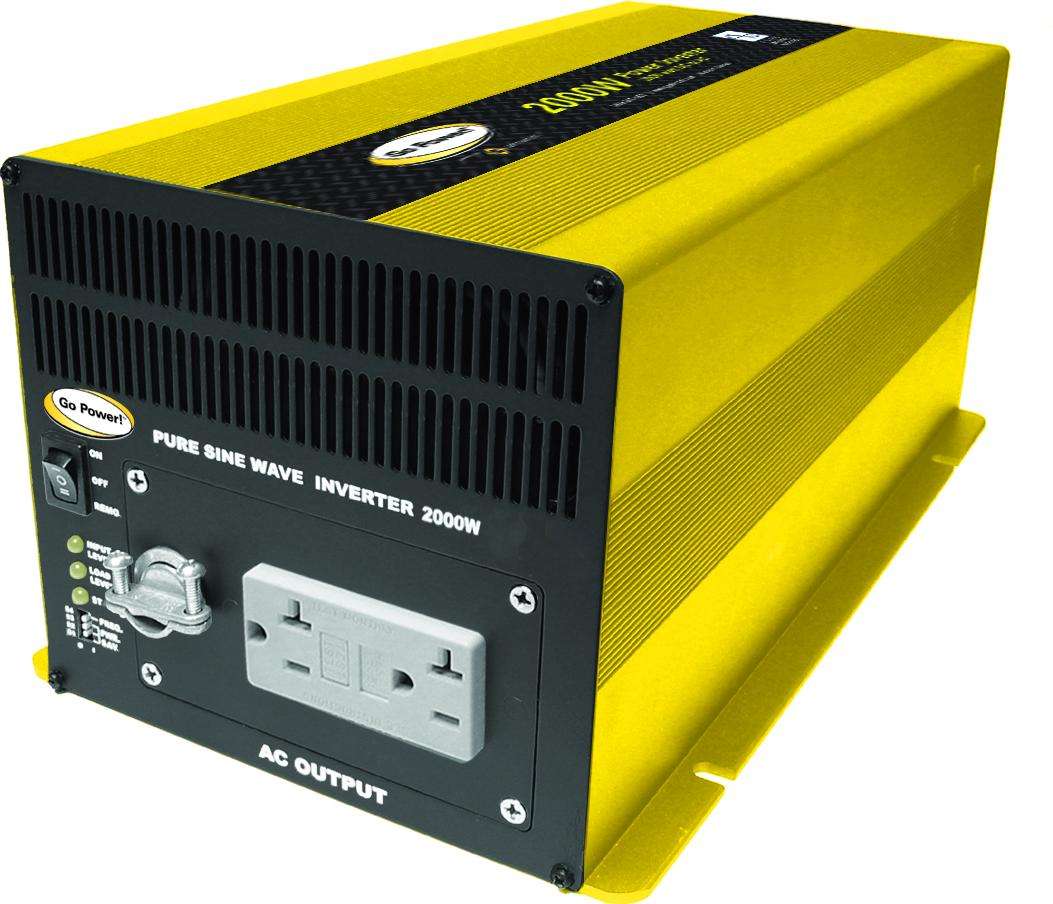

- 2000 watt pure sine wave inverter for AC power (GP-SW2000-12)
- 30 amp pulse width modulated digital regulator (GP-PWM-30)
- 45 amp smart battery charger (GPC-45-MAX)
- 30 amp pre-wired automatic shore power/inverter AC switching kit (GP-TS)
- DC inverter install kit (GP-DC-KIT4)

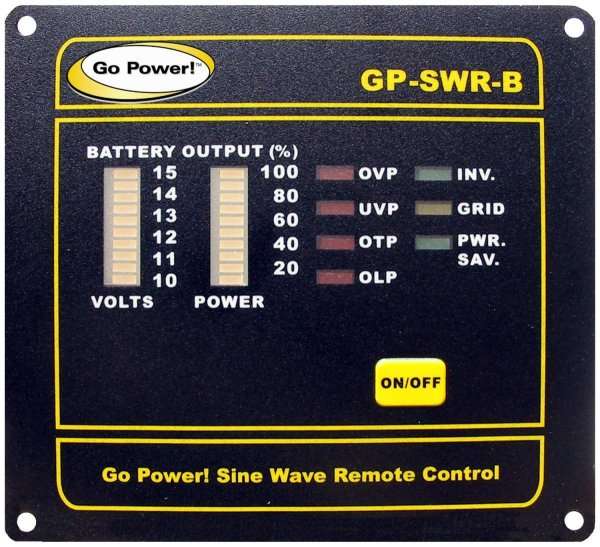

- Inverter Remote on/off (GP-SWR-B)
- 50′ of MC4 output cable (#10) and all mounting hardware (2 x GP-MH-2)
Solar Modules and Controller Specifications:
- Solar cell type: Monocrystalline
- Output power: 320 W
- Rated current: 18.3 A
- Rated DC voltage: 17.5 V
- Module efficiency: 17.8%
- Connectivity: MC4 connectors
- Solar controller: 30 A PWM, multi battery option, 4 stage charging, digital display and flush mount
- Frame type: Silver anodized aluminum frame
- Certifications: CE
- Dimensions (each): 58.3 x 26.5 x 1.38 in
- Weight (each): 24.5 lb
- Warranty: 25 years (module) / 5 years (controller)
Show the full description
Inverter, Fuse Kit and Remote Specifications:
- Output waveform: Pure sine wave
- Continuous output power: 2000 W
- Surge rating: 4000 W
- Inverter voltage (DC): 12 V
- Output voltage (AC): 110 VAC RMS
- Input voltage (DC): 10.5 – 16 VDC
- Remote: On/off switch, LED monitoring and flush mount
- Fuse Kit: #2 cable and 300 A inverter fuse
- Certifications (inverter): CE, FCC
- Dimensions: 16.6 x 8.2 x 6.5 in
- Weight: 19 lbs
- Warranty: 2 years
Smart Converter Charger:
- Current: 45 A
- Output voltage (DC): 13.6 V
- Max power output (continuous): 600 W
- Dimensions: 7.5 x 10.5 x 3.5 in
- Weight: 5 lbs
Transfer Switch Specifications:
- Current: 30A
- Electrical rating: 120 VAC 60Hz
- Dimensions: 9.65 x 7.28 x 4.75 in
- Weight: 3 lbs
- Warranty: 2 years
Specifications
| Power | 320 W |
|---|
| Weight | 45 lb |
|---|
| Warranty | 2, 5 and 25 years depending on parts |
|---|
| Brand | Go Power |
|---|---|
| SKU | SOLAR-ELITE-320 |
