KISAE

KISAE Abso SW 1000 Watt 12V Inverter with 40A Charger IC121040

  • Continuous power1,000 W
  • Nominal voltage12 V

$349.99

In stock

Works with: 12 V systems

Questions? Call (727) 761-7772

SKU IC121040

Pairs well with

Total for 4 items: $785.67

Overview

The unit is fully automatic. When utility power is available, the unit is running in AC bypass mode. AC output is supplied from the utility. The internal AC charger is ON and will automatically top up the battery bank that is connected to the unit. When there is a power failure from the utility or an AC source is not available, the unit will run on battery power and the unit will generate sinewave AC output to maintain and operate the load continuously.

KISAE Part Number: IC121040

Features:

  • Regulated output, 1000W sinewave
  • Low battery shutdown to prevent total battery discharge
  • GFCI outlets for safe operation
  • Built in LED display for battery status and load measurement
  • Silent operation
  • Over temperature shutdown
  • Remote on/off switch
  • Compact size for easy storage
  • USB port for charging USB devices
  • 40A multi-stage battery charger built-in

Inverter Specifications:

  • Continuous Output Power: 1000 Watts
  • Peak (surge) Output Power: 2000 Watts
  • AC Output Voltage/Frequency: 120 VAC/60 Hz
  • AC Output Current: 8.3A
  • Output Waveform: True Sine Wave <3% THD
  • No Load Draw: < 1.5A
  • 5V USB: 750mA
  • DC Input Voltage (Nominal): 12.5Vdc
  • DC Input Operation Range: 10.5 – 15.5Vdc
  • DC Input Current: 90 A
  • Input Under-Voltage Warning/Shutdown: 11.2/10.5V
  • Input Under-Voltage Recovery: 11.8Vdc
  • Input Over-Voltage Shutdown: 15.5Vdc
  • Output Power Warning/Shutdown: Warning/Error code
  • Output Short Circuit Protection: Error code
  • Temperature Warning/Shutdown: Warning/Error code
  • Dimensions: 9 X 18.8 X 4.5″
  • Weight: 12.5 lbs
Show the full description

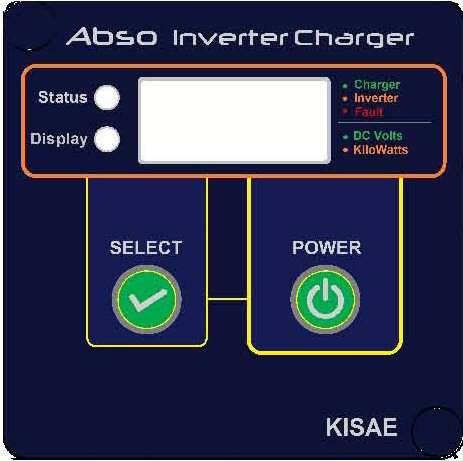

Detachable Display Specifications:

  • Display Panel Port: RJ12
  • Inverter Mode: Inout V/A, Output Power
  • Charger Mode: Status & Battery Voltage
  • Warning & Fault Code: YES
  • LED Indicator: YES( Status, Display)

Battery Charger Specifications:

  • Charge Voltage Range: 14.2 – 15.5V
  • Float Voltage Range: 13.4 – 13.8V
  • Equalize Voltage: 16.0V
  • Charger Current (max): 40A
  • Charger Current Setting(Manual/Auto): 5, 10, 20, 40A/Auto
  • Charge Control: Bulk / Absorption / Float
  • Charging Battery Type: Gel, Flooded, AGM, Lithium
  • AC Input Voltage/Frequency: 120 VAC/60 Hz
  • AC Input Voltage Range: 90-132VAC
  • Charger Efficiency: > 80%
  • Dead Battery Charging: 1VDC
  • Over Charge Protection: YES, Error Code
  • Over Temperature Protection: Derated/Shutdown

AC Transfer Switch Specifications:

  • Transfer Time: < 30ms
  • Transfer Relay: 30A
  • AC Input Source Setting: 15, 20, 30A
  • AC Input Port: Heavy Duty Connector 30A
  • AC Output Port 1: 15A (GFCI & breaker)
  • AC output port 2: Heavy Duty Connector 30A
  • AC output port 3: 15A (GFCI & breaker)

Warranty:

  • 1 Year

Specifications

Electrical
Continuous power1,000 W
Nominal voltage12 V
Physical
Weight12.5 lb
Warranty and compliance
Warranty1 Year
Identifiers
BrandKISAE
SKUIC121040
