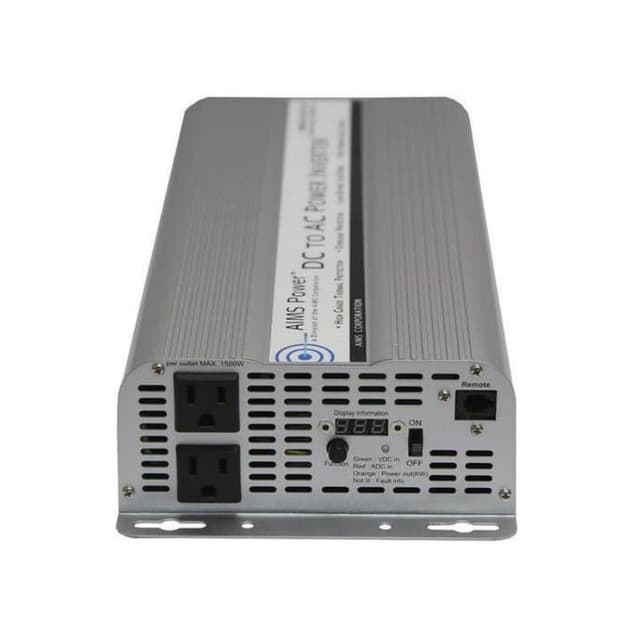

Aims 2500 Watt 24 Volt Power Inverter PWRINV250024W

Part Number: PWRINV25K24V The newly designed Aims PWRINV250024W 24 volt 2500 watt inverter! Same great Aims 2500 watt inverter, only this model requires 24 volts!

Features:

• 2500 Watts max continuous power
• 20.8 Amps continuous power
• Modified sine wave
• Volt meter on front panel to monitor your battery voltage
• Amp meter on front panel to monitor your Current use (rate at which battery is drained)
• Over Temperature LED indicator
• Over Load LED indicator
• 2 AC receptacles: Type 2 or 3 prong
• On/Off Switch
• Pre-wired for remote On/Off Switch
• Over Temperature protection
• Over Load protection
• Dual cooling fan
• Internal fuse protection
• AC output short circuit protection
• Auto reset on most fault conditions
• Aluminum case for optimal cooling
• Pre-slotted mounting plate
• Instruction manual
• Free 1 year tech support
• 1 year warranty parts and labor

Specifications:

• Continuous output power: 2500 Watts
• Surge power capability (peak power): 5,000 Watts
• DC input / operating voltage: 19 to 29 Volts
• Output voltage: 120 Volts AC +/- 10%
• Output wave form: modified sine wave with phase correction
• Output frequency: 60 Hz +/- 1 Hz
• Battery low voltage alarm: 10.5 +/-0.5 Volts
• Battery low voltage shutdown: 10.0+/-0.5 Volts
• No load current: < 0.6 Amps
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• No load minimum operating temperature: 5 degrees Fahrenheit
• Full load maximum operating temperature: 131 +/-5 degrees Fahrenheit (automatic shutdown)
• AC Output Socket Type: dual Type 2-3 prong
• High input voltage protection: 29V
• Low input voltage shutdown: 19V
• Internal fuse protection
• Product size (L x W x H): 14.5 x 10.25 x 3.5 in.
• Product weight: 13.5 pounds
