Aims 2500 Watt Inverter with AC Cord BCT010009D

Aims Part Number: BCT010009D

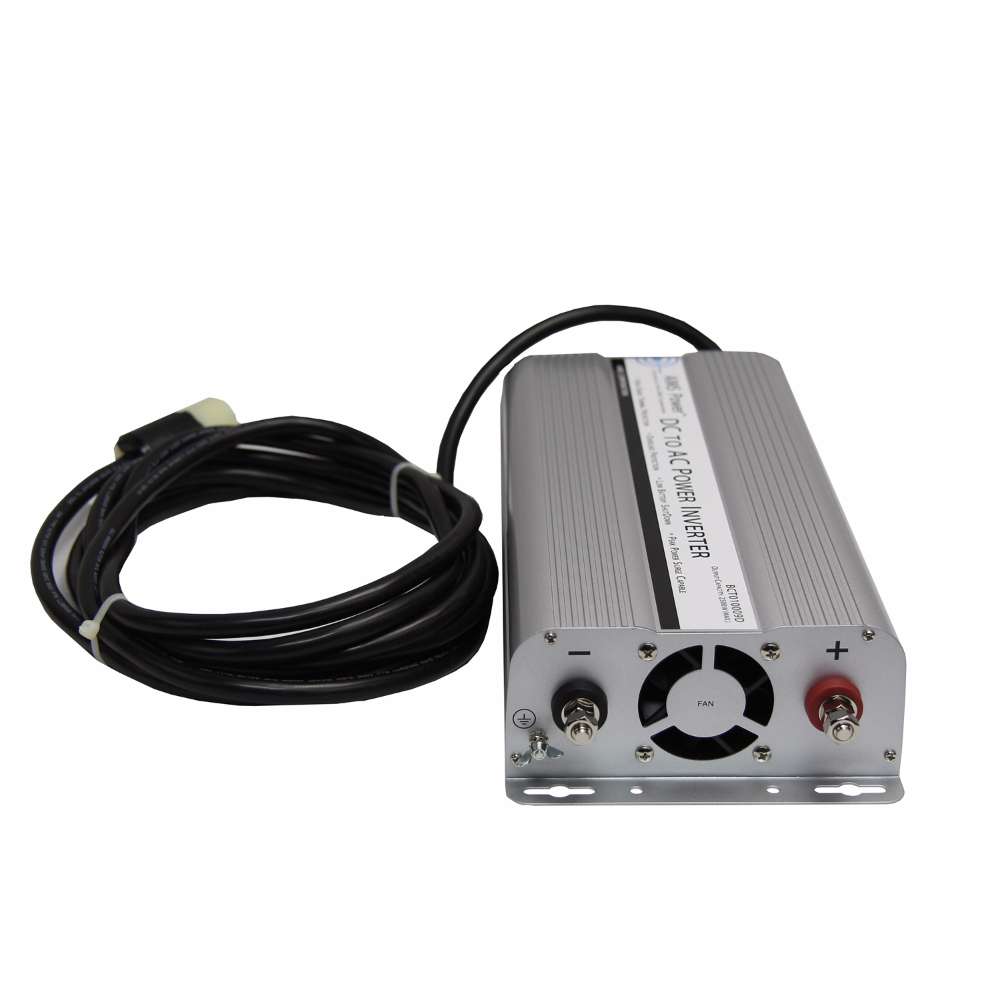

The Aims BCT010009D 2500 watt 12V power inverter includes a 30 amp outlet on a built-in/on 13 foot cable. Perfect for inverters which are installed in hard to reach or secluded areas.

Features:

• 2500W max continuous power
• Modified sine wave
• Over Temperature protection
• Over Load protection
• Single 30 amp ac receptacle attached to a built-in 13 foot extension cord that can be used with a separate splitter if extra outlets are needed. Surge power strips not recommended
• On/off switch
• Convenient always on dual cooling fan operation
• Internally fuse protected
• ac output short circuit protection
• Auto reset on most fault conditions
• Heavy Duty battery terminals are designed to conduct more current therefore, requiring only one set of cables
• Aluminum case for optimal cooling
• Pre-slotted mounting plate
• Instruction manual
• Free 1 year tech support
• 1 Year Warranty Parts and Labor

Specifications:

• Continuous output power: 2500 Watts. Use 200 amp inline fuse.
• Surge power capability (peak power): 5000 Watts
• dc input / operating voltage: 10 to 15 Volts
• Output voltage: 120 Volts ac +/- 10%
• Output wave form: modified sine wave with phase correction
• Output frequency: 60 Hz +/- 1 Hz
• Battery low voltage alarm: 10.5 +/- 0.5 Volts
• Battery low voltage shutdown: 10.0 +/- 0.5 Volts
• AC amps: 21
• DC amps: 208
• No load current: 2.5 Amps with switch in the on position (because fans are always on) See PWRINV2500 if you don’t want always on fans. If the switch is in the off position it is < .1 amp
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• No load minimum operating temperature: -15 degrees Celsius
• Full load maximum operating temperature: 55 +/- 5 degrees Celsius
• AC Output Socket Type: dual Type 2 -3 prong
• High input voltage protection: 15V-17V
• Low input voltage shutdown: 10V
• Internal fuse protection
• Product size (L x W x H): 18.75″X 9.5″X 3.75″
• Weight: 13.5 lbs
