Mini Magnum Panel w/175A DC breaker and 60A single pole AC input breaker MMP175-60S
$583.20
Out of stock
This item cannot be ordered online right now. Call (727) 761-7772 to ask about availability.
Questions? Call (727) 761-7772
SKU MMP175-60S
Overview

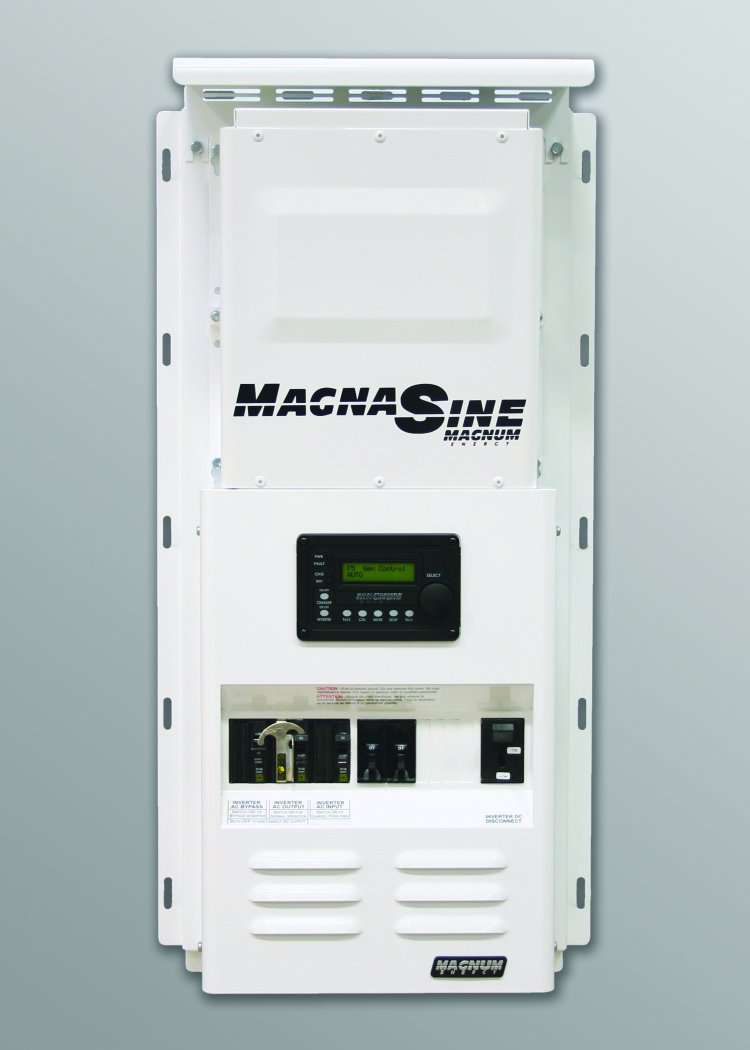

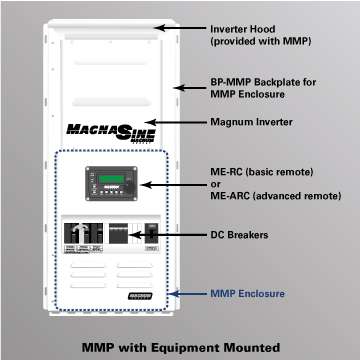

- Pic 3 note: The MMP shown with inverter (sold separately) and optional remote and backplate.
The MMP Mini Magnum Panel is an inclusive, easy-to-install panel designed to work with one Magnum MS-AE, MS-PAE, MS, RD or other non-Magnum inverter / charger.
Magnum Part Number: MMP175-60S
Works With:
- MS Series
- MSH-RE Series
- MS-PAE Series
- RD Series
Features:
Show the full description
- Small footprint: only 12.5″ wide x 18″ tall x 8″ deep
- Money-saving design: not only is the MMP less expensive, but it is pre-wired for fast installation, saving labor costs
- Easy access: front-mounted breakers and remote (optional)
- Choices: can be wired for 120 VAC or 120/240 VAC output
- Inclusive: works with non-Magnum inverter / chargers (may require the optional knockout plate for the top of the MMP: an MMP-KP)
- Listed: ETL listed to UL1741 and CSA C22.2 107-01
- DC load breakers: fits either din rail or back-mount DC load breakers.
Includes:
- One DC breaker 175A
- One AC bypass breaker 60A single pole
- One AC input breaker 60A single pole
- 500A/50mv DC shunt
- DC buss bars for battery positive and negative
- Din rail or back mount for optional DC mini breakers will hold up to eight breakers
- Inverter hood
Specifications
| Weight | 9 lb |
|---|
| Condition | New |
|---|
| SKU | MMP175-60S |
|---|---|
| Model number | MMP175-60S |
| Manufacturer part number | MMP175-60S |
