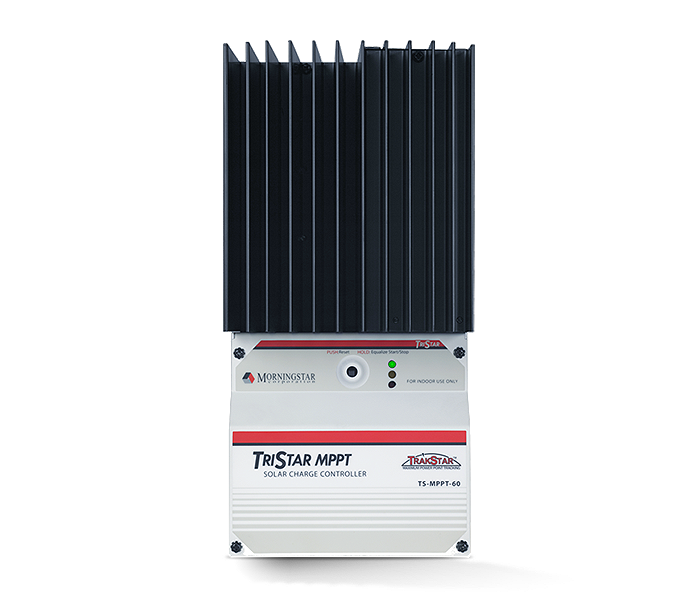

Morningstar TriStar 60A MPPT Solar Charge Controller TS-MPPT-60
$798.00
In stock
Questions? Call (727) 761-7772
SKU TS-MPPT-60
Overview
Morningstar Part Number: TS-MPPT-60
Morningstar’s TS-MPPT-60 TriStar 60A MPPT solar controller with TrakStar Technology™ is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW. The controller provides the industry’s highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers.
The TriStar MPPT features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve. This product is the first PV controller to include on-board Ethernet for a fully web-enabled interface and includes up to 200 days of data logging.
Maximizes Energy Harvest:
- Better peak power point tracking than other MPPT controllers
- Very fast sweeping of the entire I-V curve
- Recognition of multiple power points during shading or mixed PV arrays
- Excellent performance at sunrise and low solar insolation levels
Extremely High Reliability:
Show the full description
- Robust thermal design and no cooling fans
- Parallel circuit design provides less stress and longer life for electronic components
- No mechanical relays
- Extensive electronic protections including PV short circuit protection
- Epoxy encapsulated inductors and conformally coated printed circuit boards
Very High Efficiency:
- Peak efficiency of 99%
- Proprietary tracking algorithm minimizes power losses
- Low self-consumption
- Continuous operation at full power to 45°C without need to de-rate
- Selected electronic devices with higher ratings to minimize losses from heating
Metering and Data Logging
- Optional TriStar meter and remote meter provides detailed operating data, alarms and faults
- Three LED’s display system status
- Up to 200 days of data logging via meters or communications ports
Extensive Networking and Communications Capabilities: Enables system monitoring, data logging and adjustability. Uses open standard MODBUS™ protocol and Morningstar’s MS View software. Meterbus: communications between compatible Morningstar products
- Serial RS-232: connection to a personal computer
- EIA-485: communications between multiple devices on a bus
- Ethernet: fully web-enabled interface to a local network or internet; view from a web browser or send email/text messages
Specifications
| Weight | 3 lb |
|---|
| Warranty | 5 Year |
|---|
| Brand | Morningstar |
|---|---|
| SKU | TS-MPPT-60 |
