Overview

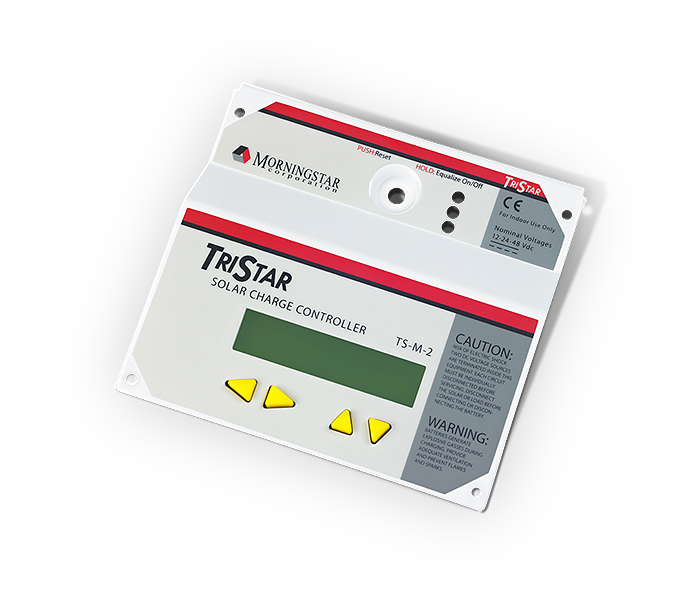

The Morningstar TS-M-2 TriStar Digital Meter-2 will display a great deal of information about the TriStar controller and the operation of your system. In addition, the meter enables manual functions and controller diagnostics. These capabilities will increase your confidence that the system is working properly and will help you to improve system reliability, battery life, and system performance. It is worth the time getting to know your meter!
Easy to install
- Uses standard 6 conductor RJ-11 connectors
- Both data and meterbus power flow over a single cable
- Network supports up to 15 devices and, optionally, more than one meter per system
Networking Capability
- Displays individual controller data from up to 15 TriStars with optional Morningstar MeterHub
- Aggregates system data to show total charge, load and battery charge/discharge state
- Auto detects any device found on the network
Easy to use:
Show the full description
- Four directional pushbuttons for easy navigation of display screens
- Backlighting to enhance readability
- Meter may be added during initial controller installation, added as an upgrade anytime in the future or connected temporarily for troubleshooting with the ability to use this same meter at other site
Certifications
- CE, RoHS and REACH Compliant
- ETL Recognized Component FCC Class B Part 15 Compliant
- ACMA-EMC Compliant
- Manufactured in a Certified ISO 9001 Facility
Specifications:
- Self consumption: 7.5 mA / 42.5 mA (backlight on)
- Mounting Plate Dimensions: (4.56 x 4.56″)
- Plate Material: powder coated steel
- Meter weight: 0.5lb
- Connector type: RJ-11 (6-pin)
- TS-M-2 cable: 5 in – 6 conductor
- Cable temperature: 60C rating
- Operating temperature: 40C to +60C
- LCD temperature rating: 20C to +70C
- Storage temperature: 55C to +85C
- Humidity rating: 5 to 95 % (NC)
- Tropicalization: Conformal coating on both sides of circuit board
- Certifications: CE Compliant, RoHS Compliant, ETL Recognized Component
- Compatibility: TriStar, TriStar MPPT
Specifications
| Weight | 1 lb |
|---|
| Warranty | 5 Year |
|---|
| Brand | Morningstar |
|---|---|
| SKU | TS-M-2 |
