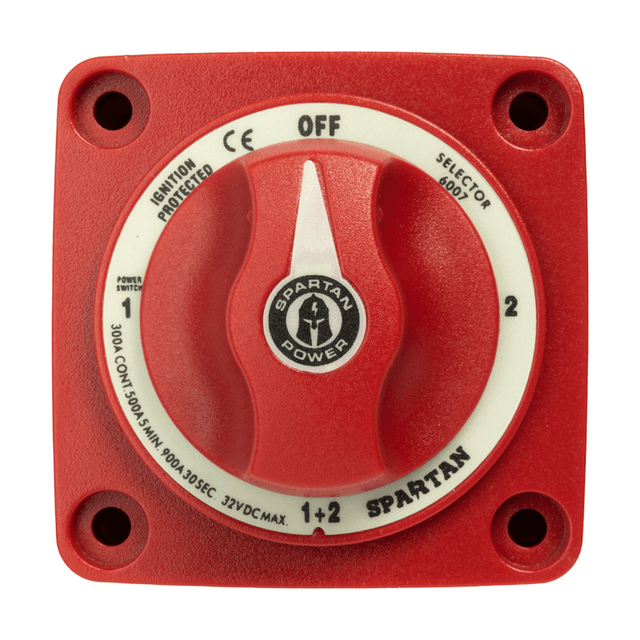

Spartan Power 300A Battery Combiner / Selector Switch 4 Position
$35.66
In stock
Questions? Call (727) 761-7772
SKU SP-BS300A-4P-COMBI-RED-M
Overview
The Spartan Power mini battery selector switches isolated battery banks to all loads or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption. Mounting screws are included!
Spartan Power 300A ON/OFF Battery Combiner Switch Specifications:
- Switch Type: Selector 4 Position
- Color: Red
- Switch Positions: 4
- Battery Combine: Yes
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Stud Size: 3/8″
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Continuous Rating: 300A
- Intermittent Rating: 500A (5 min)
- Cranking Rating: 900A (30 seconds)
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables 1.12in (28.45mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Mounting Holes: Accept #10 Screw
- Stud Material: Tinned Copper
- Stud Torque: 120 in-lb (13.56 Nm)
- Terminal Stud Size: 3/8″ – 16(M10)
- Weight: 0.77 lbs
- Dimensions: 2.95 x 2.95 x 3.32 Inches
SKU:
SP-BS300A-4P-COMBI-RED-M
Specifications
| Weight | 0.8 lb |
|---|---|
| Dimensions | 3 × 3 × 4 in |
| Brand | Spartan |
|---|---|
| SKU | SP-BS300A-4P-COMBI-RED-M |
