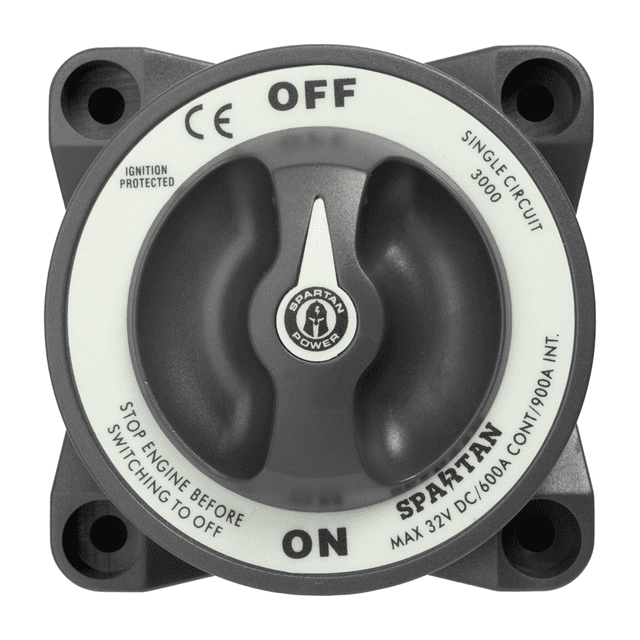

Spartan Power 600A ON/OFF Battery Switch
$64.66
In stock
Questions? Call (727) 761-7772
SKU SP-BS600A-GREY
Overview
The Spartan Power heavy duty on-off battery switch with knob switches a single battery to a single load group. The ignition protected battery switch is safe for installation aboard gasoline powered boats, RV and solar applications. Case design allows surface, front panel, or rear panel mounting. The Isolating cover with snap-on sections protects rear contacts. The Spartan Power battery switch has a crank rating of 1750A for 30 seconds, 900A for 5 minutes and 600A continuous rating.
Spartan Power 600A ON/OFF Battery Switch Specifications:
- Switch Type: Single Circuit ON-OFF
- Color: Grey
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Terminal Stud Torque: 220 in-lb (24.86 Nm)
- Continuous Rating: 600A
- Intermittent Rating: 900A (5 min)
- Cranking Rating: 1750A (30 seconds)
- Battery Inputs: 1
- Cable Clearance For 4/0 AWG Cables: 1.10in (27.94mm)
- Cable Quantity to Meet Ratings: Two Cables
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Mounting Holes: Accept 1/4″ (M6) Screw
- Terminal Stud Size: 1/2″ (M12)
- Weight: 1.3 lbs
- Dimensions: 3.85 x 3.85 x 3.097 Inches
SKU:
SP-BS600A-GREY
Specifications
| Weight | 2 lb |
|---|---|
| Dimensions | 4 × 4 × 3.5 in |
| Brand | Spartan |
|---|---|
| SKU | SP-BS600A-GREY |
